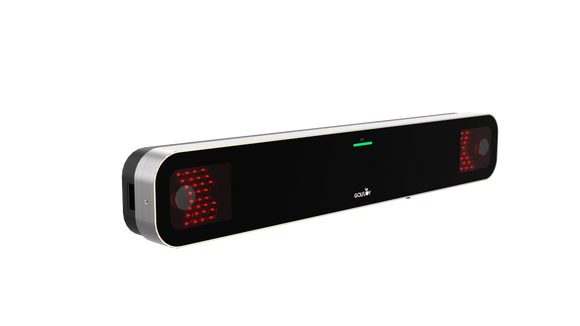

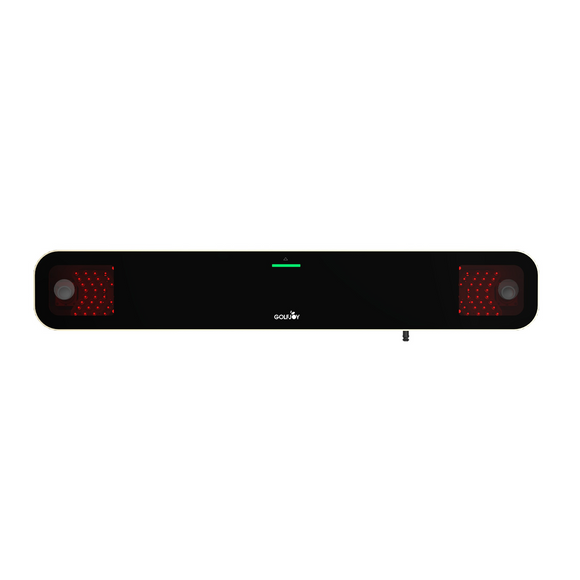

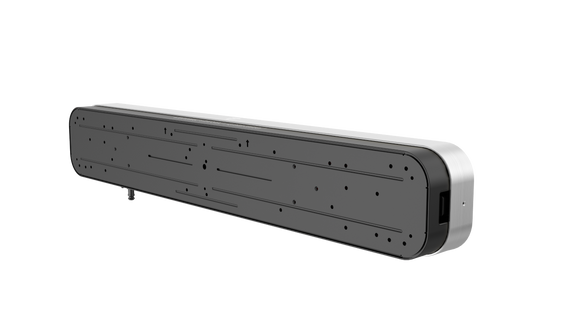

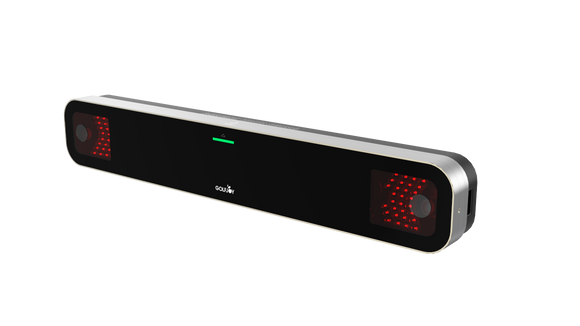

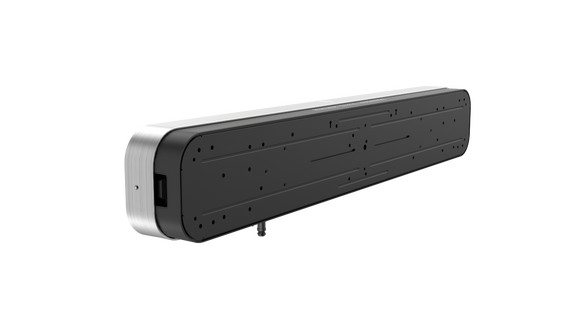

GOLFJOY GR2 Launch Monitor

• Rigel 2 Launch Monitor
• Calibration Board
• Power Adapter
• Ethernet Cable
• Club Stickers (5 sheets, 100 stickers each)
• 1-year full coverage warranty
• 3-Month GolfJoy PC Software Trial
• Lifetime Access to GolfJoy Mobile Apps

Ball Data (7 Metrics):

• Ball Speed
• Launch Angle
• Back Spin
• Side Spin
• Spin Rate
• Spin Axis
• Launch Direction

Club Data (9 Metrics):

• Club Speed
• Club Path
• Smash Factor
• Attack Angle
• Face Angle
• Face To Path
• Dynamic Loft
• Dynamic Lie
• Closure Rate


Trajectory Data (16 Metrics):

• Apex (Peak Height)
• Total Distance
• Carry Distance
• Roll Distance
• Carry %
• Roll %
• Landing Angle
• Hang Time
• Curve
• Curve Carry
• Side Carry
• Deviation
• Deviation Angle
• Center Line
• Gap
• Target Line Carry

Total Metrics Tracked: 32

• Works natively with GOLFJOY software, GSPro, E6 Connect, and Creative Golf for immersive simulator play and realistic course experiences — no additional connector fees for basic compatibility.
• Integrates with the GolfJoy Pro mobile app for data viewing and session tracking; connects via built‑in Wi‑Fi and Bluetooth for seamless setup and interaction.
• Real‑time shot data and feedback are delivered instantly through high‑speed transmission, supporting efficient practice and simulator play.
• There are no mandatory recurring subscription fees for basic data connectivity or use with the GolfJoy software platform, though optional premium simulators may carry separate costs.

• Cameras: Dual high-speed cameras
• Data Points: 32 total (ball, club, trajectory)
• Response Time: < 0.3 seconds
• Hitting Zone: 40cm × 40cm (approx. 15.75" × 15.75")
• Weight: 6.75 kg / 14.88 lbs
• Dimensions: 1000mm W × 159mm H × 100mm D (39.37" × 6.26" × 3.94")
• Power Supply: DC24 V (90 W maximum)
• Power: IN: 100–240V | OUT: 24V-3.75A
• Connectivity: Wi-Fi, Bluetooth, Ethernet
• Operating Temperature: −10 °C to 40 °C (14 °F to 104 °F)
• Supported Golf Balls: Any golf ball (no restrictions)
• Material: Aluminum Alloy + TPU
• Software Compatibility: Works with GOLFJOY 4K, GSPro, E6 Connect, and Creative Golf platforms

Indoor Use:

• Distance to Tee: Fixed at 110 cm (approx. 1.1 meters)
• Ceiling Height: 9–10.2 feet (2.75–3.1 meters)
• For Dynamic Platforms: A ceiling height of 2.91–3.1 m (9.5–10.2 ft) is recommended for optimal performance.

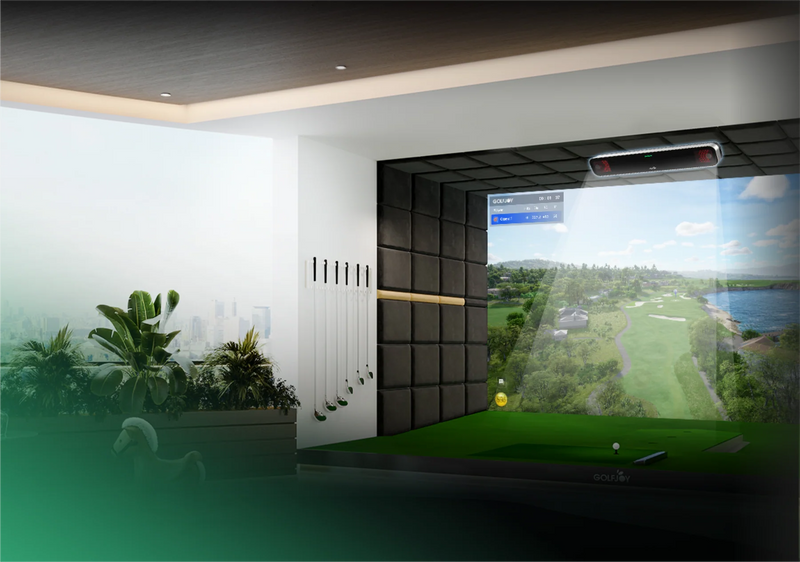

1. Mount the Unit Overhead: Position the GR2 in its overhead location above your hitting area using the magnetic‑suction mounting or your ceiling installation setup — this places it in the optimal front‑facing detection position for every swing.
2. Power On the Monitor: Connect the GR2 to power using the included adapter; once powered, the system will initialize and be ready for calibration.
3. Calibration Setup: Use the supplied calibration board to set reference points within your simulator bay — this helps define your hitting zone and ensures the cameras are aligned correctly.
4. Define Play Area: Within your connected software (such as GOLFJOY or simulator platforms), map your hitting zone and screen placement so the GR2 tracks shots relative to your actual tee and screen position.
5. Verify with a Practice Shot: Take a test swing to verify that the system reads your shot accurately — once confirmed, you’re ready to start full practice or simulation play.
